Board mount DC-DC converter module, 1W output power, featuring dual isolated outputs of 15V and -15V, each with 33mA current capability. This hybrid power supply operates from a 10.8V to 13.2V DC input, with a nominal input of 12V. The module offers 1kV isolation and achieves 76% efficiency. Housed in a SIP package, it measures 19.5mm x 6mm x 10mm and is rated UL94 V-0 for flammability. Operating temperature range is -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata NMA1215SC technical specifications.
General
Package/Case
SIP
Current - Output 1
33mA
Current - Output 2
33mA
Depth
19.5mm
Efficiency
76%
Flammability Rating
UL94 V-0
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
19.5mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
33mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
-15V
Number of Outputs
2
Output Current
33mA
Output Power
1W
Output Voltage
15V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NMA
Voltage - Output 1
15V
Voltage - Output 2
-15V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Murata NMA1215SC Datasheet
Download the complete datasheet for Murata NMA1215SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

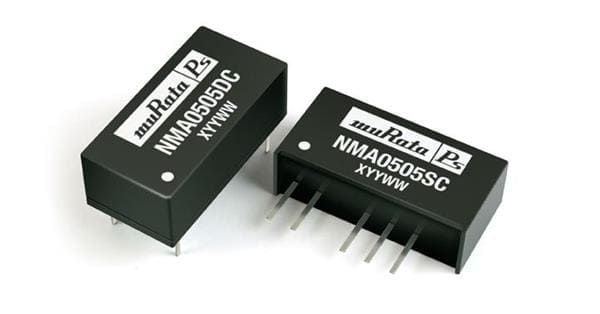

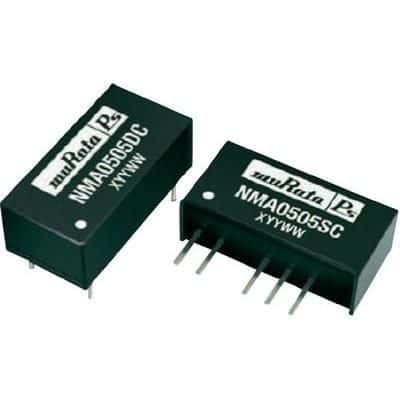

Product Images
