Board mount DC-DC converter delivering 25W output power with a 5.1V nominal output voltage and 5A maximum output current. Features a wide DC input voltage range of 36V to 75V, with a nominal input of 48V. Offers 1.5kV isolation voltage and operates efficiently at 85%, with a broad temperature range from -40°C to 110°C. Constructed with UL94 V-0 flammability rating and through-hole mounting for robust integration.
MountingThrough Hole
Power25W
Quick Jump:
Technical Specifications
Murata NPH25S4805EIC technical specifications.
General
Depth
50mm
Efficiency
85%
Flammability Rating
UL94 V-0
Height
0.39inch
Isolation Voltage
1.5kV
Length
1.97inch
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
36V
Max Input Voltage
75V
Min Input Voltage
36V
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Power
25W
Max Power Dissipation
25W
Mount
Through Hole
Nominal Input Voltage
48V
Nominal Output Voltage
5.1V
Number of Outputs
1
Operating Supply Voltage
48V
Output Current
5A
Output Power
25W
Output Voltage
5.1V
Package Quantity
15
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NPH25S
Voltage - Output 1
5.1V
Width
1.38inch
Compliance
RoHS
Compliant
Datasheet
Murata NPH25S4805EIC Datasheet
Download the complete datasheet for Murata NPH25S4805EIC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

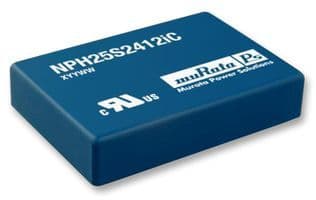

Product Images
