Board mount DC-DC converter module delivering 9.9W output power with a single 3.63V output at up to 3A. Features include UVLO, OCP, OTP, and SCP protection, with an impressive 95.3% efficiency. Operating across a wide temperature range of -40°C to 85°C, this hybrid module utilizes surface mount technology in an LGA-12 package. Input voltage range is 2.4V to 5.5V DC, with a nominal input of 5V.
PackageSMD/SMT
MountingSurface Mount
Power9.9W
Quick Jump:
Technical Specifications
Murata OKL-T/3-W5N-C technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
3A
Depth
12.19mm
Efficiency
95.3%
Features
UVLO, OCP, OTP, SCP
Height
6.35mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
2.4V
Max Input Voltage
5.5V
Min Input Voltage
2.4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Power
9.9W
Max Output Voltage
3.63V
Min Output Voltage
600mV
Max Power Dissipation
10W
Mount
Surface Mount
Nominal Input Voltage
5V
Nominal Output Voltage
3.63V
Number of Outputs
1
Output Current
3A
Output Power
9.9W
Output Voltage
3.63V
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Okami™ OKL-T/3-W5
Voltage - Output 1
3.6V
Width
12.19mm
Compliance
RoHS
Compliant
Datasheet
Murata OKL-T/3-W5N-C Datasheet
Download the complete datasheet for Murata OKL-T/3-W5N-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

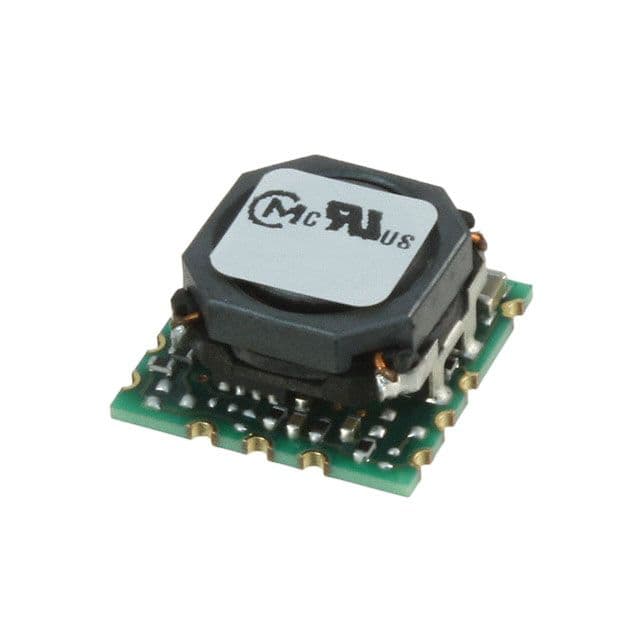

Product Images
