Technical Specifications
Murata PRG18BC1R0MM1RB technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
7.5A
Depth
0.8mm
Height
0.8mm
Hold Current
330mA
Length
1.6mm
Max Current Rating
7.5A
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Supply Voltage
6V
Package Quantity
1
Packaging
Tape and Reel
Resistance
1R
RoHS Compliant
Yes
Series
POSISTOR® PRG18BC
Termination
SMD/SMT
Tolerance
20%
Trip Current
740mA
Voltage
6V
Voltage Rating
6V
Compliance
RoHS
Compliant
Datasheet
Murata PRG18BC1R0MM1RB Datasheet
Download the complete datasheet for Murata PRG18BC1R0MM1RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

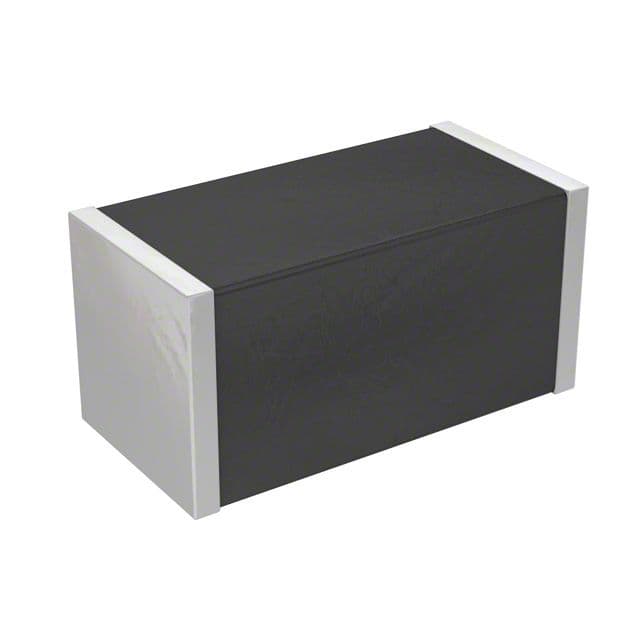

Product Images
