PackageRadial
Voltage30V
Resistance2.7R
Current Rating4.5A
Quick Jump:
Technical Specifications
Murata PTGL07AS2R7K2B51B0 technical specifications.
General
Package/Case
Radial
Current Rating
4.5A
Depth
3.5mm
Diameter
7.3mm
Height
12.3mm
Hold Current
336mA
Lead Free
Exempt
Lead Pitch
5mm
Max Current Rating
4.5A
Max Operating Temperature
85°C
Min Operating Temperature
-10°C
Mount
Through Hole
Package Quantity
1200
Packaging
Bulk
Resistance
2.7R
RoHS Compliant
Yes
Series
POSISTOR® PTGL
Termination
Radial
Thickness
3.5mm
Tolerance
10%
Trip Current
663mA
Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Murata PTGL07AS2R7K2B51B0 Datasheet
Download the complete datasheet for Murata PTGL07AS2R7K2B51B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

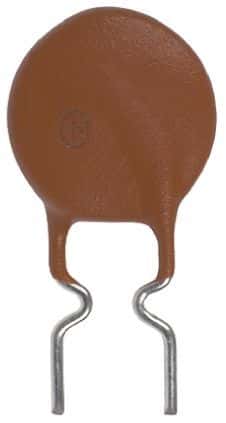

Product Images
