Frequency10.7MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications

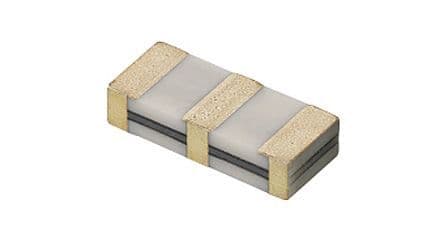

Murata SFECV10M7KA00-R0 technical specifications.
General
Bandwidth
110kHz
Case Code (Imperial)
2706
Case Code (Metric)
6915
Package/Case
SMD/SMT
Filter Type
FM
Frequency
10.7MHz
Height
0.067inch
Impedance
330R
Insertion Loss
6dB
Lead Free
Lead Free
Length
0.272inch
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CERAFIL®, SFECV
Termination
SMD/SMT
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
