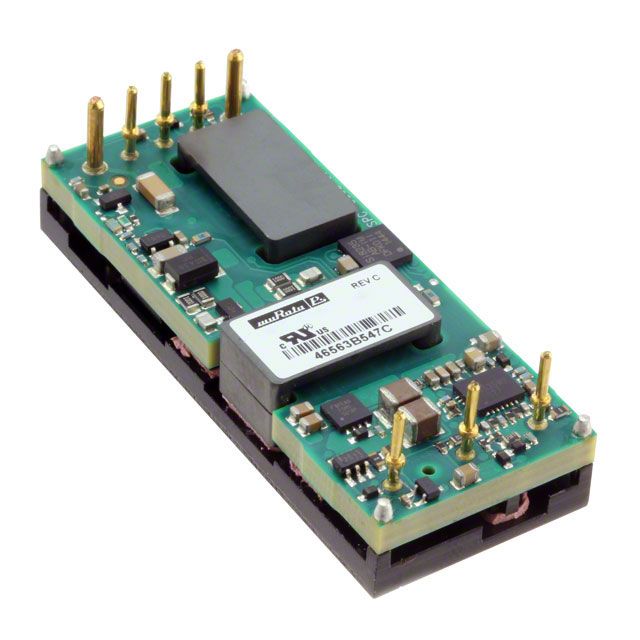

Board mount DC-DC converter module delivering 5V at 20A output current, with a maximum output power of 100W. Features include UVLO, OVP, OCP, OTP, and SCP protection. Operates with an input voltage range of 18V to 75V, nominal 48V, and offers 2.25kV isolation. This module boasts 90.5% efficiency and a compact 2.3" x 0.9" x 0.34" through-hole package, suitable for operation between -40°C and 85°C.
PackageModule
MountingThrough Hole
Power100W
Quick Jump:
Technical Specifications
Murata UWE-5/20-Q48NB-C technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 20A |
| Efficiency | 90.5% |
| Features | UVLO, OVP, OCP, OTP, SCP |
| Height | 0.34inch |
| Isolation Voltage | 2.25kV |
| Length | 2.3inch |
| Max Input Voltage | 75V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Power Dissipation | 100W |
| Mount | Through Hole |
| Nominal Input Voltage | 48V |
| Number of Outputs | 1 |
| Output Current | 20A |
| Output Power | 100W |
| Output Voltage | 5V |
| Package Quantity | 21 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | UWE |
| Voltage - Output 1 | 5V |
| Width | 0.9inch |
Compliance
| RoHS | Compliant |
