The Myrra 44095 power transformer features a current rating of 42mA and operates within a temperature range of 0 to 70°C. It measures 24.3mm in depth, 27.6mm in width, and 32.6mm in length, with a weight of 80g. This transformer is designed for through-hole mounting and is suitable for applications requiring a frequency range of 50 to 60Hz.
Frequency60Hz
Current Rating42mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Myrra 44095 technical specifications.
General
| Current Rating | 42mA |
| Depth | 24.3mm |
| Length | 32.6mm |
| Max Frequency | 60Hz |
| Min Frequency | 50Hz |
| Max Operating Temperature | 70°C |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Reach SVHC Compliant | Unknown |
| Weight | 80g |
| Width | 27.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Myrra 44095 Datasheet
Download the complete datasheet for Myrra 44095 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

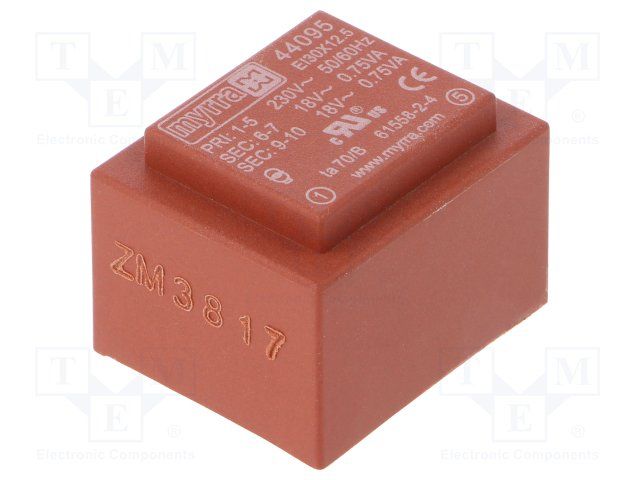

Product Images
