Myrra
47136

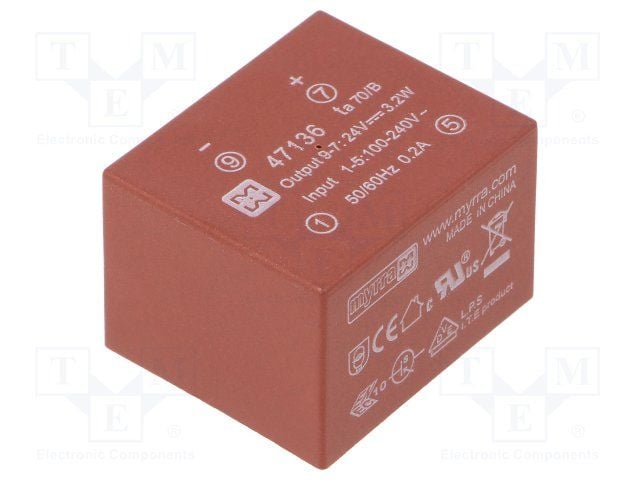

MYRRA 47136 AC/DC PCB Mount Power Supply, Switch Mode, Fixed, 1 Output, 85 V, 265 V, 3.2 W, 24 V
Frequency440Hz
MountingThrough Hole
Quick Jump:
Technical Specifications
Myrra 47136 technical specifications.
General
Current - Output 1
130mA
Depth
31.7mm
Efficiency
80%
Height
21.8mm
Length
31.7mm
Max Frequency
440Hz
Min Frequency
47Hz
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Current
130mA
Max Output Power
3.2W
Mount
Through Hole
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
130mA
Output Voltage
24V
Reach SVHC Compliant
Unknown
Voltage - Output 1
24V
Width
26.7mm
Compliance
RoHS
Compliant
Datasheet
Myrra 47136 Datasheet
Download the complete datasheet for Myrra 47136 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
