Frequency12MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
NDK NX5032GC-12MHZ-STD-CSK-6 technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
100R
Frequency
12MHz
Frequency Stability
15ppm
Frequency Tolerance
15ppm
Height
0.047inch
Length
0.197inch
Load Capacitance
8pF
Max Operating Temperature
75°C
Min Operating Temperature
-10°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Series
NX5032GC
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
NDK NX5032GC-12MHZ-STD-CSK-6 Datasheet
Download the complete datasheet for NDK NX5032GC-12MHZ-STD-CSK-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

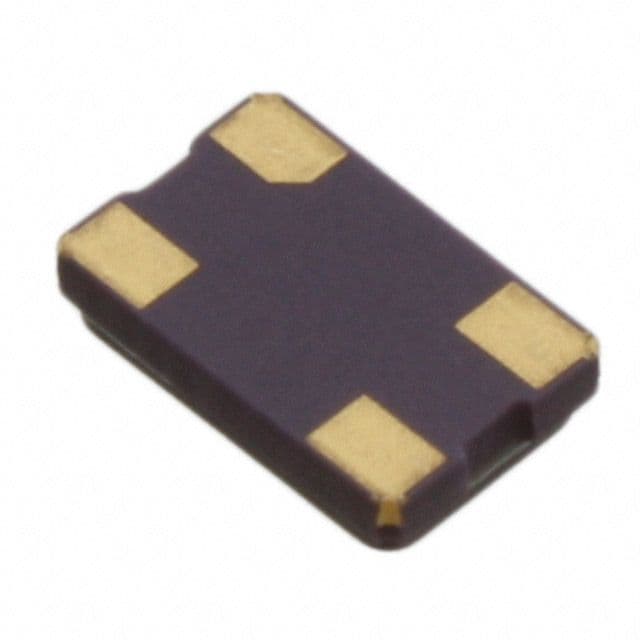

Product Images
