Technical Specifications
NDK NX8045GB-6MHZ-STD-CSF-3 technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
250R
Frequency
6MHz
Frequency Stability
30ppm
Frequency Tolerance
20ppm
Height
0.079inch
Length
0.315inch
Load Capacitance
8pF
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Series
NX8045GB
Width
0.177inch
Compliance
RoHS
Compliant
Datasheet
NDK NX8045GB-6MHZ-STD-CSF-3 Datasheet
Download the complete datasheet for NDK NX8045GB-6MHZ-STD-CSF-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

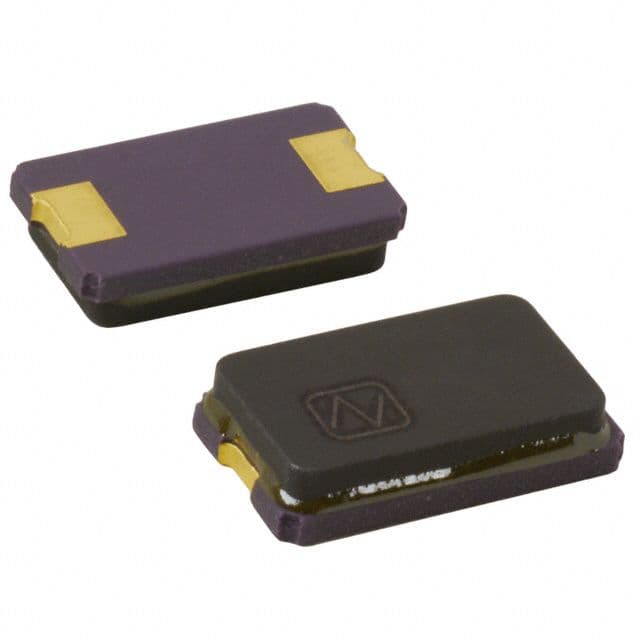

Product Images
