PackageRadial
Capacitance3F
Voltage Rating2.7V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nesscap ESHSR-0003C0-002R7 technical specifications.
General
Capacitance
3F
Package/Case
Radial
Diameter
8mm
ESR (Equivalent Series Resistance)
55mR
Height
20mm
Lead Free
Lead Free
Max Operating Temperature
65°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
RoHS Compliant
Yes
Series
ESHSR
Termination
PC Pins
Tolerance
20%
Voltage Rating
2.7V
DC Rated Voltage
2.7V
Weight
1.5g
Compliance
RoHS
Compliant
Datasheet
Nesscap ESHSR-0003C0-002R7 Datasheet
Download the complete datasheet for Nesscap ESHSR-0003C0-002R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

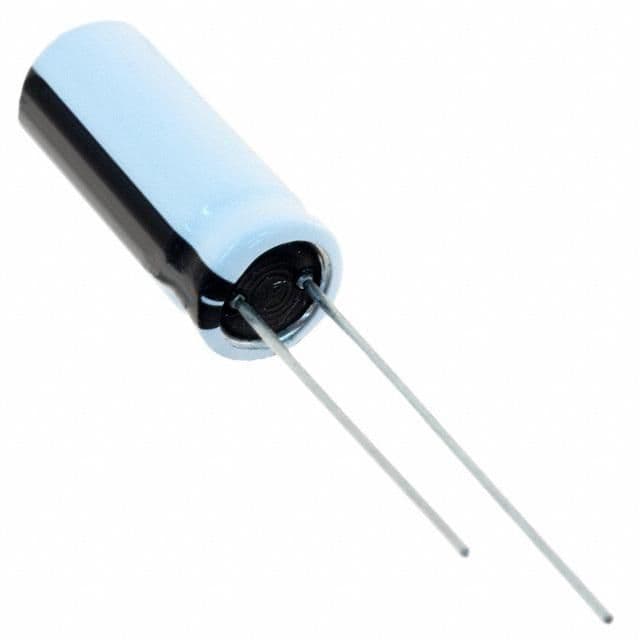

Product Images
