This 100F radial capacitor from Nesscap features a lead free termination and operates within a temperature range of -40°C to 60°C. The component has a diameter of 22mm and a height of 45mm, and is available in bulk packaging. It is not RoHS compliant, and has a voltage rating of 2.7V with a 20% tolerance.
PackageRadial
Capacitance100F
Voltage Rating2.7V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nesscap ESHSR-0100C0-002R7 technical specifications.
General
| Capacitance | 100F |
| Package/Case | Radial |
| Diameter | 22mm |
| ESR (Equivalent Series Resistance) | 10mR |
| Height | 45mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | ESHSR |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 2.7V |
| DC Rated Voltage | 2.7V |
| Weight | 22.5g |
Compliance
| RoHS | Not Compliant |
Datasheet
Nesscap ESHSR-0100C0-002R7 Datasheet
Download the complete datasheet for Nesscap ESHSR-0100C0-002R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

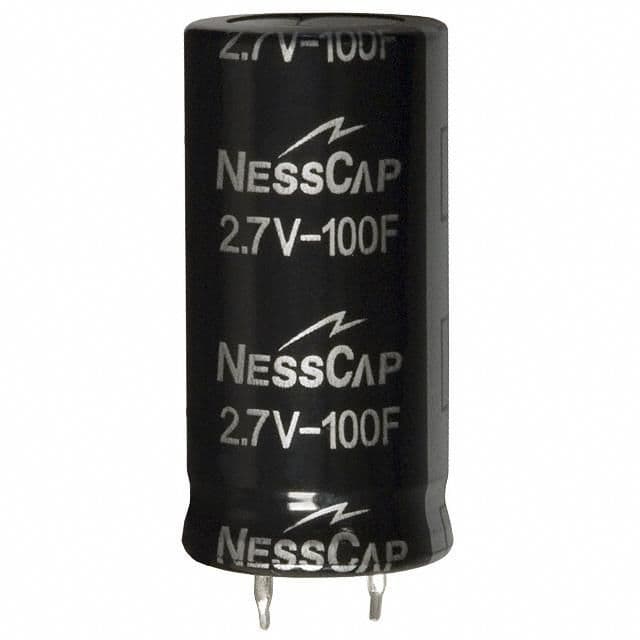

Product Images
