Nexperia
74ABT162245ADGG:11

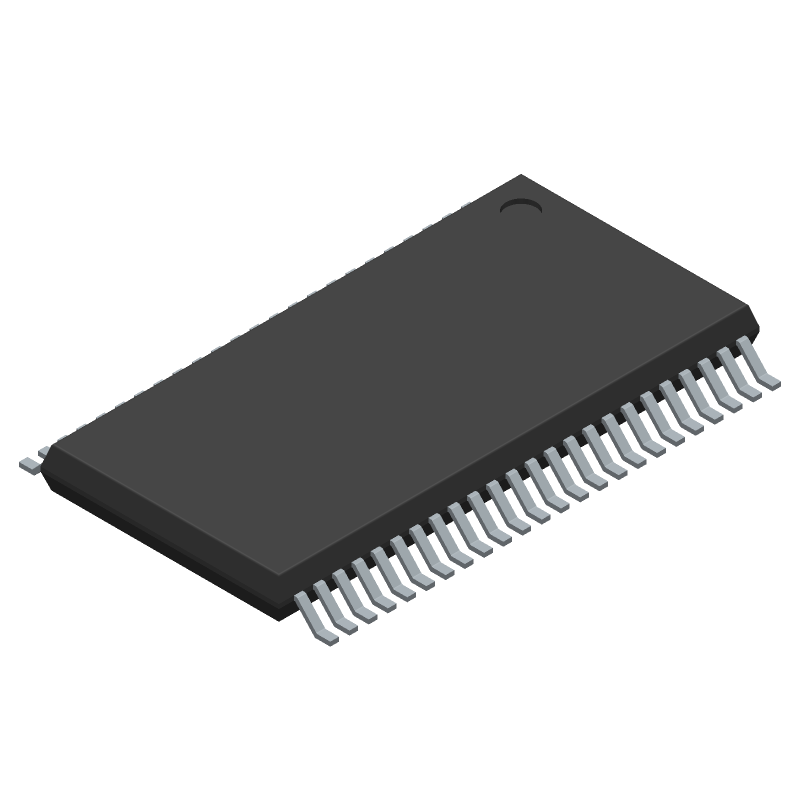

74ABT162245A; 74ABTH162245A - 16-bit bus transceiver with 30 Ω series termination resistors; 3-state TSSOP 48-Pin
Quick Jump:
Technical Specifications
Nexperia 74ABT162245ADGG:11 technical specifications.
General
Max Operating Temperature
85
Number of Terminals
48
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDSO-G48
Width
6.25
Length
12.65
Pin Count
48
Number of Functions
2
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom (Vsup)
5
Supply Voltage-Max (Vsup)
5.5
Supply Voltage-Min (Vsup)
4.5
Logic IC Type
BUS TRANSCEIVER
Family
ABT
Propagation Delay (tpd)
4.9
Number of Bits
8
Output Polarity
TRUE
Number of Ports
2
Compliance
RoHS
Yes
HTS Code
8542.39.00.01
REACH
Compliant
Military Spec
False
Datasheet
Nexperia 74ABT162245ADGG:11 Datasheet
Download the complete datasheet for Nexperia 74ABT162245ADGG:11 to view detailed technical specifications.
No datasheet is available for this part.
