Polarized tantalum capacitor, 10µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a 0603 surface mount package with a 7.5Ω ESR. Operating temperature range from -55°C to 125°C. RoHS compliant.
Package0603
Capacitance10uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon F981A106MMA technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.85mm |
| Dielectric Material | Tantalum |
| ESR (Equivalent Series Resistance) | 7.5R |
| Features | General Purpose |
| Height | 0.8mm |
| Height - Seated (Max) | 0.035inch |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | F98 Frameless™ |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.033inch |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon F981A106MMA Datasheet
Download the complete datasheet for Nichicon F981A106MMA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

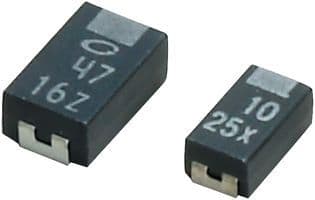

Product Images
