Technical Specifications
Nichicon JUWT1685MHD technical specifications.
General
| Capacitance | 6.8F |
| Package/Case | Radial |
| Diameter | 12.5mm |
| ESR (Equivalent Series Resistance) | 800mR |
| Lead Pitch | 5mm |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVerCAP® JUW |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 2.7V |
| DC Rated Voltage | 2.7V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon JUWT1685MHD Datasheet
Download the complete datasheet for Nichicon JUWT1685MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

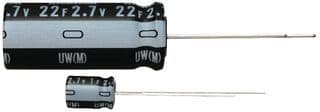

Product Images
