Nichicon
LGN2D331MELY30
Cap Aluminum Lytic 330uF 200V 20% (20 X 30mm) Snap-In 10mm 1200mA 3000h 105°C Bulk
PackageRadial
Capacitance330uF
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGN2D331MELY30 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
20mm
Features
General Purpose
Height
30mm
Height - Seated (Max)
0.787inch
Lead Pitch
10mm
Leakage Current
770uA
Length
30mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
3000°C
Mount
Through Hole
Package Quantity
250
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.2A
RoHS Compliant
Yes
Series
Bulk
Termination
Snap in
Tolerance
20%
Voltage Rating
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Nichicon LGN2D331MELY30 Datasheet
Download the complete datasheet for Nichicon LGN2D331MELY30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

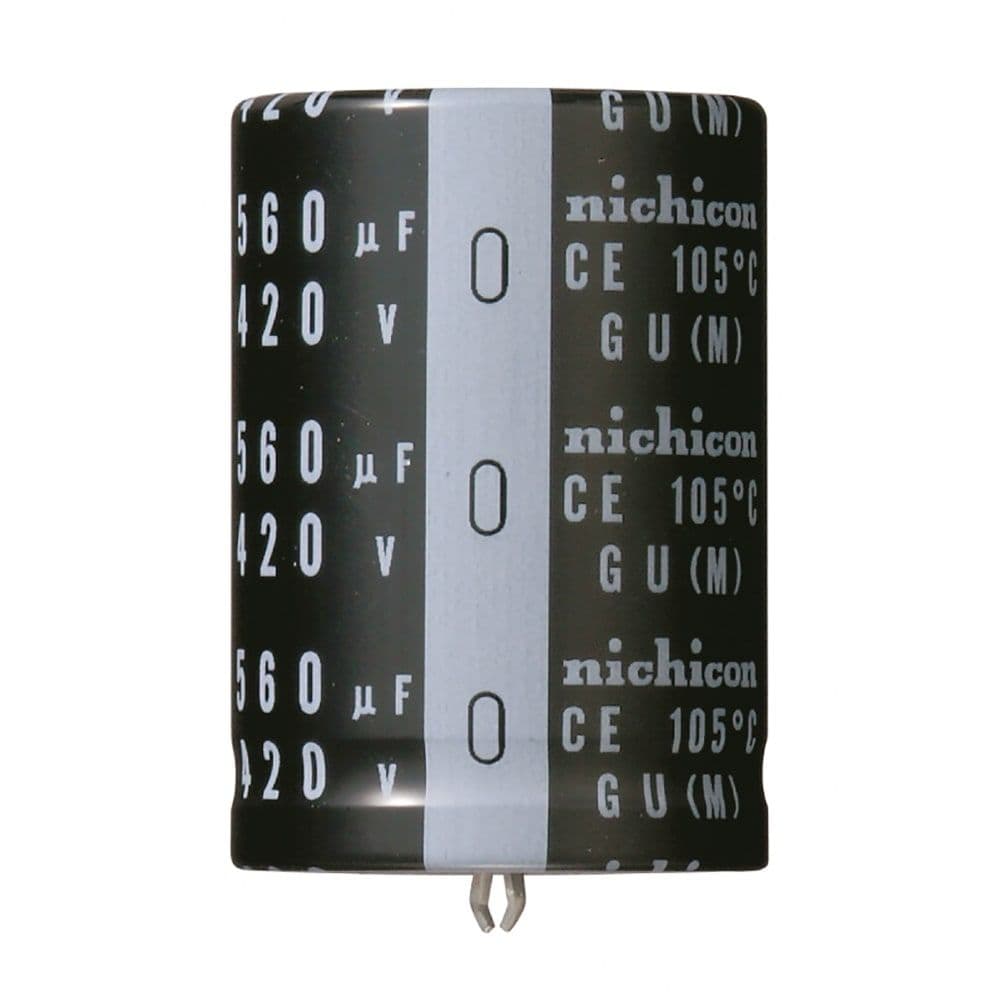

Product Images
