Aluminum electrolytic capacitor with 100µF capacitance and 450V DC rated voltage. Features a 20% tolerance, 970mA ripple current at 120Hz, and a dissipation factor of 0.2%. Designed for through-hole PCB mounting with snap-in termination, measuring 25mm in diameter and height, with a 10mm lead pitch. Operates from -25°C to 85°C with a rated life of 3000 hours at 85°C.
PackageRadial
Voltage450V
Capacitance100uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LLS2W101MELA technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 630uA |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 970mA |
| Ripple Current (AC) | 970mA |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2W101MELA Datasheet
Download the complete datasheet for Nichicon LLS2W101MELA to view detailed technical specifications.
No datasheet is available for this part.

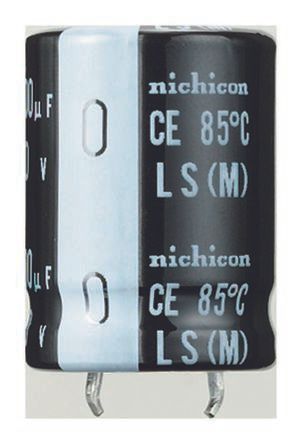

Product Images
