Aluminum electrolytic capacitor with 330µF capacitance and 450V DC rated voltage. Features 20% tolerance, 2.15A ripple current, and 770µA leakage current at 120Hz. Snap-in termination, through-hole mounting, and a radial package measuring 35mm in diameter and height. Operates from -25°C to 85°C with a 3000-hour life expectancy.
PackageRadial
Voltage450V
Capacitance330uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LLS2W331MELC technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
35mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
35mm
Height - Seated (Max)
1.378inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
770uA
Length
35mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.15A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Test Frequency
120Hz
Tolerance
20%
Voltage
450V
Voltage Rating
450V
DC Rated Voltage
450V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS2W331MELC Datasheet
Download the complete datasheet for Nichicon LLS2W331MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

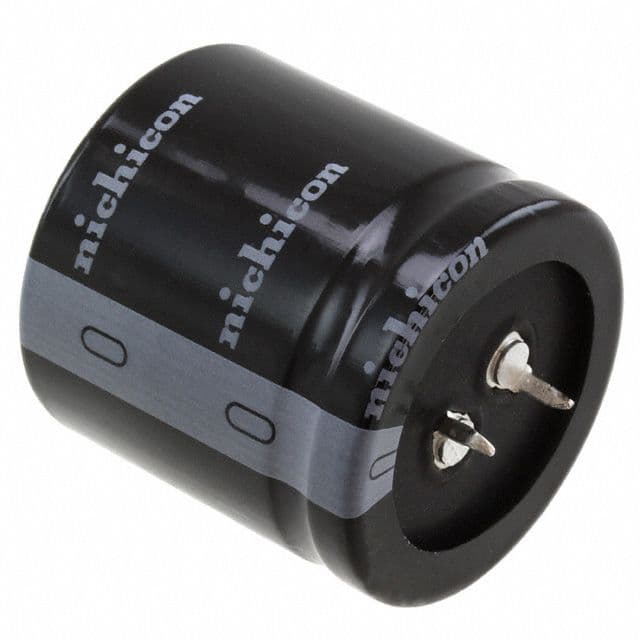

Product Images
