Technical Specifications
Nichicon LNT1H223MSE technical specifications.
General
| Capacitance | 22mF |
| Package/Case | Radial |
| Diameter | 51mm |
| Features | General Purpose |
| Height | 80mm |
| Height - Seated (Max) | 3.268inch |
| Lead Pitch | 0.866inch |
| Leakage Current | 3.14mA |
| Length | 51mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Package Quantity | 5 |
| Packaging | Bulk |
| Ripple Current | 6.3A |
| RoHS Compliant | Yes |
| Series | LNT |
| Termination | Screw |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LNT1H223MSE Datasheet
Download the complete datasheet for Nichicon LNT1H223MSE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

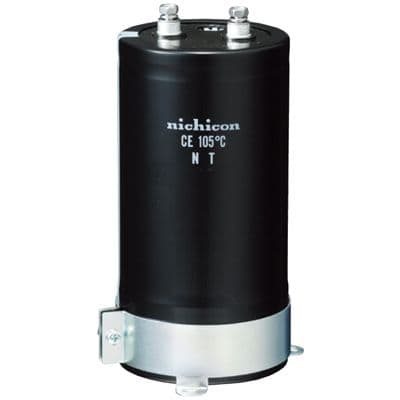

Product Images
