Technical Specifications
Nichicon LNU2W392MSEG technical specifications.
General
| Capacitance | 3.9mF |
| Package/Case | Radial |
| Diameter | 63.5mm |
| Height | 135mm |
| Height - Seated (Max) | 5.433inch |
| Lead Pitch | 1.126inch |
| Leakage Current | 3.97mA |
| Length | 135mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Package Quantity | 5 |
| Packaging | Bulk |
| Ripple Current | 16.3A |
| RoHS Compliant | Yes |
| Series | NU |
| Termination | Screw |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LNU2W392MSEG Datasheet
Download the complete datasheet for Nichicon LNU2W392MSEG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

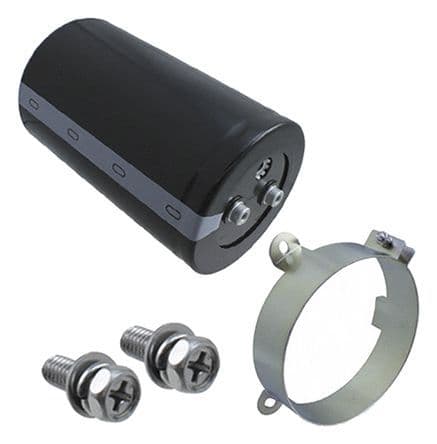

Product Images
