Nichicon
PCV1D151MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 20V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
PackageRadial
Capacitance150uF
Voltage Rating20V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV1D151MCL1GS technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
ESR (Equivalent Series Resistance)
33mR
Height
8mm
Height - Seated (Max)
0.315inch
Lead Free
Lead Free
Length
8mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
3000°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
1.9A
RoHS Compliant
Yes
Series
Cut Tape (CT) Alternate Packaging
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1D151MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1D151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

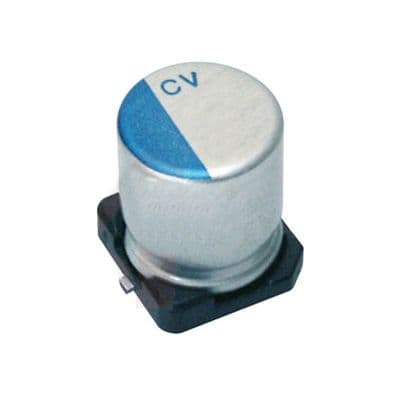

Product Images
