Nichicon
PCV1D331MCL2GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 20V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
PackageRadial
Capacitance330uF
Voltage Rating20V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nichicon PCV1D331MCL2GS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
22mR
Lead Free
Lead Free
Leakage Current
1.32mA
Length
10mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
3.8A
RoHS Compliant
Yes
Series
PCV
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1D331MCL2GS Datasheet
Download the complete datasheet for Nichicon PCV1D331MCL2GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

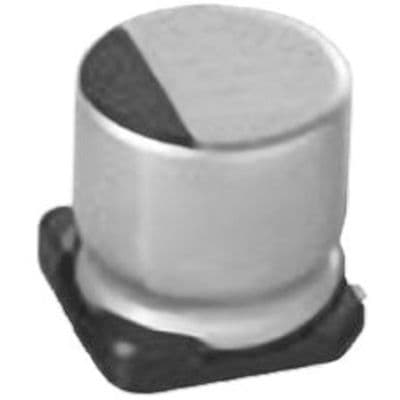

Product Images
