Surface mount aluminum electrolytic capacitor featuring a 120µF capacitance and 35V DC rated voltage. This polarized capacitor offers a 20% tolerance, 23mΩ ESR, and a ripple current rating of 3.8A. Designed for PCB mounting, it operates within a -55°C to 105°C temperature range and boasts a 3000-hour life expectancy. The cylindrical construction measures 8mm in diameter and 12mm in height, with a 3.2mm lead pitch.
PackageRadial
Voltage35V
Capacitance120uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCV1V121MCL7GS technical specifications.
General
Capacitance
120uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
23mR
Height
12mm
Lead Free
Lead Free
Lead Pitch
3.2mm
Leakage Current
840uA
Length
12mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Ripple Current
3.8A
RoHS Compliant
Yes
Series
CV
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1V121MCL7GS Datasheet
Download the complete datasheet for Nichicon PCV1V121MCL7GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

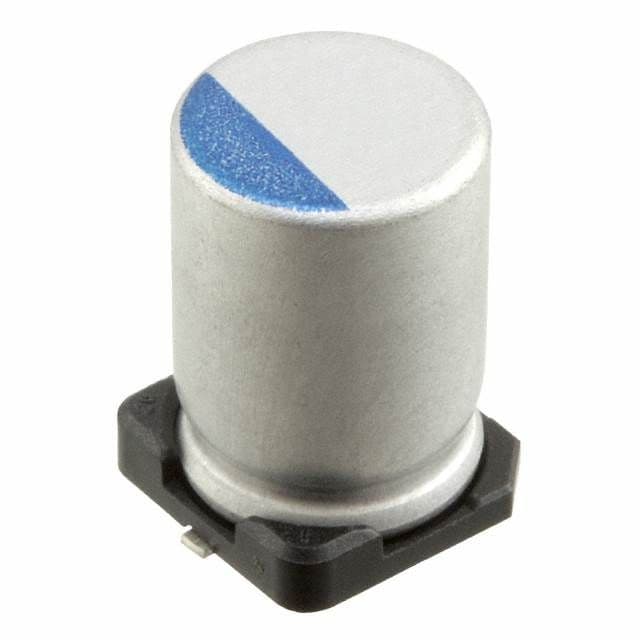

Product Images
