Aluminum polymer capacitor, 39µF capacitance, 35VDC voltage rating, and 20% tolerance. Features a low 35mΩ ESR and 1.8A ripple current capability. Operates across a wide temperature range from -55°C to 125°C with a 3000-hour lifespan. Surface mountable in an 8 x 10mm cylindrical package, supplied on tape and reel.
PackageRadial
Voltage35V
Capacitance39uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCX1V390MCL6GS technical specifications.
General
Capacitance
39uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
35mR
Height
10mm
Height - Seated (Max)
0.394inch
Lead Diameter
1.1mm
Lead Pitch
3.2mm
Leakage Current
273uA
Length
10mm
Life (Hours)
3000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.8A
RoHS Compliant
Yes
Series
CX
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCX1V390MCL6GS Datasheet
Download the complete datasheet for Nichicon PCX1V390MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

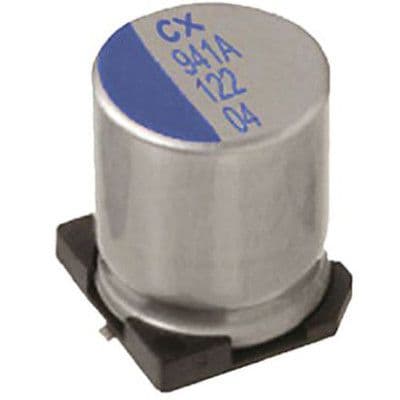

Product Images
