Automotive-grade aluminum polymer capacitor, 56µF capacitance, 35VDC voltage rating, with 20% tolerance. Features low 33mΩ ESR and 2A ripple current capability. Operates from -55°C to 125°C, offering 3000 hours of life. Surface mountable in an 8x12mm cylindrical package, supplied on tape and reel.
PackageRadial
Voltage35V
Capacitance56uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCX1V560MCL1GS technical specifications.
General
Capacitance
56uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
33mR
Height
12mm
Lead Diameter
1.1mm
Lead Pitch
3.2mm
Leakage Current
392uA
Length
12mm
Life (Hours)
3000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2A
RoHS Compliant
Yes
Series
CX
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCX1V560MCL1GS Datasheet
Download the complete datasheet for Nichicon PCX1V560MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

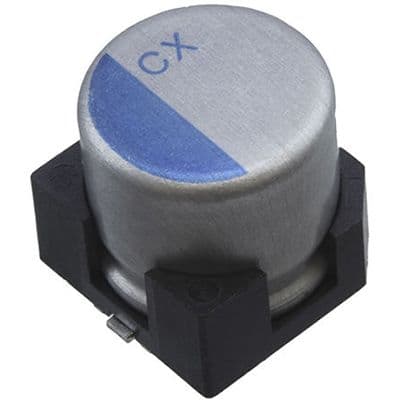

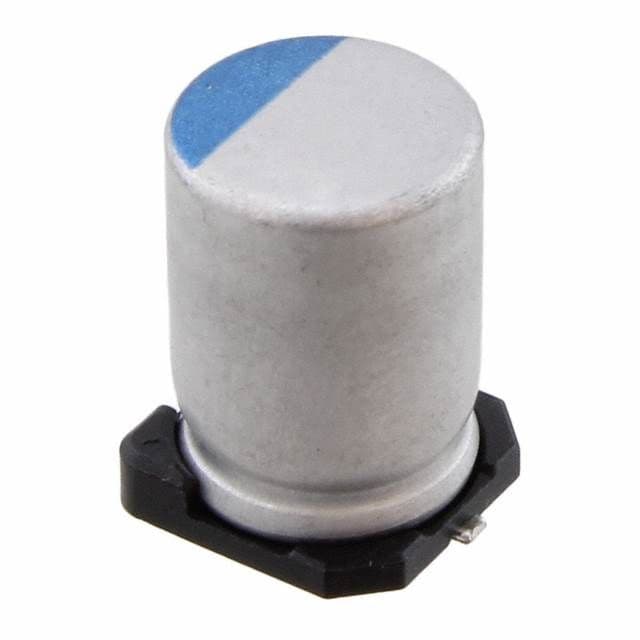

Product Images
