68µF, 35VDC polymer aluminum electrolytic capacitor with 20% tolerance. Features 30mΩ ESR, 2.2A ripple current, and a maximum operating temperature of 125°C. This surface-mount component has a 10mm diameter and 10mm height, packaged in tape and reel for automated assembly. Designed for automotive applications, it offers 3000 hours of life at rated conditions.
PackageRadial
Voltage35V
Capacitance68uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCX1V680MCL1GS technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 30mR |
| Height | 10mm |
| Lead Diameter | 1.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 476uA |
| Length | 10mm |
| Life (Hours) | 3000Hour |
| Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.2A |
| RoHS Compliant | Yes |
| Series | CX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCX1V680MCL1GS Datasheet
Download the complete datasheet for Nichicon PCX1V680MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

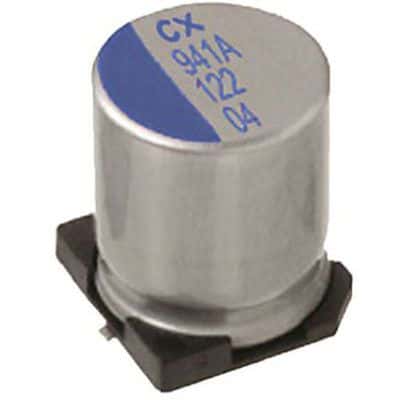

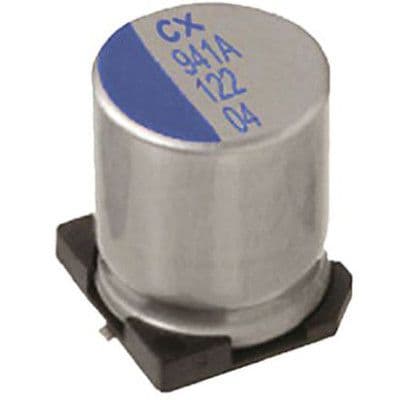

Product Images
