General purpose radial film capacitor with 1nF capacitance and 50V DC rating. Features PET dielectric, 10% tolerance, and a dissipation factor of 0.8%. Designed for through-hole PCB mounting with a 3.5mm lead pitch and 0.5mm lead diameter. Operating temperature range from -40°C to 85°C. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance1nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon QYX1H102KTP technical specifications.
General
Capacitance
1nF
Package/Case
Radial
Construction
RADIAL
Depth
2.5mm
Dielectric
PET
Dielectric Material
Polyester
Dissipation Factor
0.8%
Height
7mm
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB, Radial
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
YX
Termination
Radial
Thickness
2.5mm
Tolerance
10%
Type
General Purpose
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Nichicon QYX1H102KTP Datasheet
Download the complete datasheet for Nichicon QYX1H102KTP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

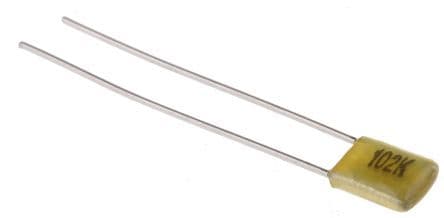

Product Images
