Technical Specifications
Nichicon UBT1A102MPD1TD technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 57mR |
| Lead Pitch | 0.197inch |
| Length | 12.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 1.1A |
| RoHS Compliant | Yes |
| Series | UBT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1A102MPD1TD Datasheet
Download the complete datasheet for Nichicon UBT1A102MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

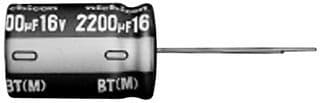

Product Images
