This 12.5mm radial aluminum electrolytic capacitor has a capacitance of 1mF and a voltage rating of 25V with a tolerance of 20%. It operates within a temperature range of -40°C to 125°C and has a leakage current of 4uA. The capacitor is constructed with a radial design and has a lead pitch of 5mm and a lead diameter of 0.6mm. It is packaged in bulk and is RoHS compliant.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UBT1E102MHD8 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| ESR (Equivalent Series Resistance) | 33mR |
| Height | 25mm |
| Impedance | 33mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 4uA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | UBT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1E102MHD8 Datasheet
Download the complete datasheet for Nichicon UBT1E102MHD8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

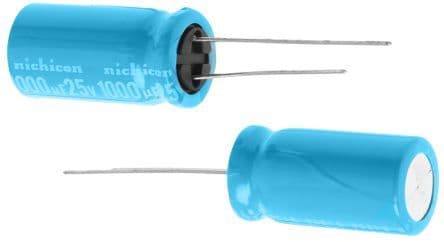

Product Images
