This is a radial lead aluminum electrolytic capacitor with a capacitance of 470uF and a voltage rating of 25V. It has a tolerance of 20% and a maximum operating temperature of 125°C. The capacitor is packaged in a radial lead configuration and is designed for through hole mounting. It is lead free and RoHS compliant.
PackageRadial
Capacitance470uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UBT1E471MPD1TD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Impedance | 57mR |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 12.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | UBT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1E471MPD1TD Datasheet
Download the complete datasheet for Nichicon UBT1E471MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

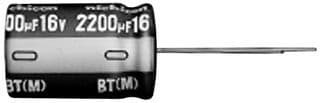

Product Images
