This 47uF aluminum electrolytic capacitor has a voltage rating of 63V and an impedance of 590mR. It is available in a radial package with a lead pitch of 0.197inch and a height of 0.571inch when seated. The capacitor operates over a temperature range of -40°C to 125°C and is compliant with RoHS regulations. It is packaged in tape and reel quantities of 500.
PackageRadial
Capacitance47uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UBT1J470MPD1TD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Height - Seated (Max) | 0.571inch |
| Impedance | 590mR |
| Lead Pitch | 0.197inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ripple Current | 530mA |
| RoHS Compliant | Yes |
| Series | UBT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1J470MPD1TD Datasheet
Download the complete datasheet for Nichicon UBT1J470MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

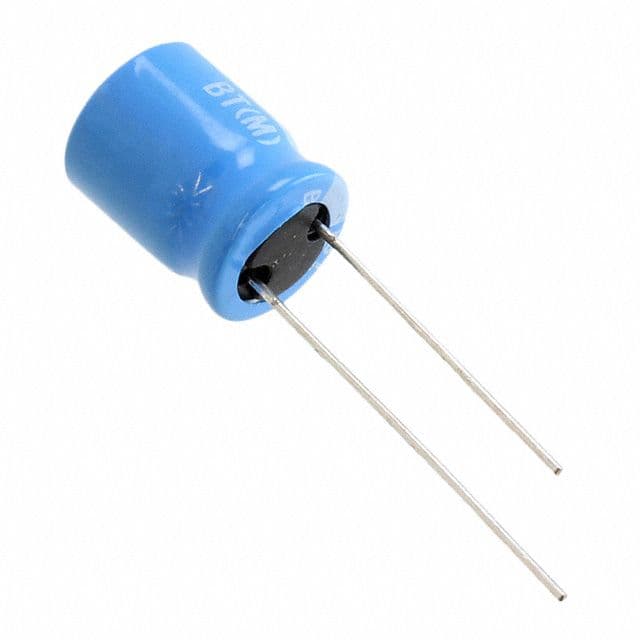

Product Images
