The Nichicon UBT Series capacitor features a capacitance of 330uF with an impedance of 75mR. It is a radial through hole type capacitor with a voltage rating of 35V and a tolerance of 20%. The operating temperature range is from -40°C to 125°C. This capacitor is RoHS compliant and packaged in cut tape.
PackageRadial
Capacitance330uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UBT1V331MPD1TD technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Impedance | 75mR |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | UBT |
| Tolerance | 20% |
| Voltage Rating | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UBT1V331MPD1TD Datasheet
Download the complete datasheet for Nichicon UBT1V331MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

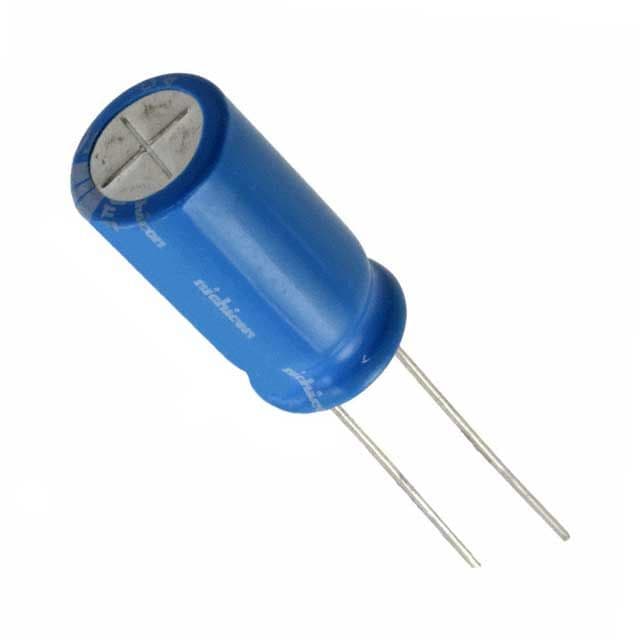

Product Images
