Aluminum electrolytic capacitor with 470µF capacitance and 10V DC rated voltage, featuring 20% tolerance. This radial component offers a 400mA ripple current capability and a long 1000-hour life at 150°C maximum operating temperature. Dimensions include a 10mm diameter and 20mm height, with a 5mm lead pitch and 0.6mm lead diameter. Designed for through-hole mounting, it operates from -55°C to 150°C and is supplied in bulk packaging.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UBX1A471MPL technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dissipation Factor
0.2%
Height
20mm
Height - Seated (Max)
0.846inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
4uA
Length
20mm
Life (Hours)
1000Hour
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
400mA
RoHS Compliant
Yes
Series
BX
Termination
Radial
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UBX1A471MPL Datasheet
Download the complete datasheet for Nichicon UBX1A471MPL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

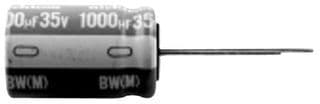

Product Images
