Standard aluminum electrolytic capacitor, 47µF capacitance, 100V voltage rating, and 20% tolerance. Features a radial package with 5mm lead pitch, 0.6mm lead diameter, and dimensions of 10mm diameter by 20mm height. Offers a ripple current of 640mA, leakage current of 141µA, and a rated life of 1000 hours at 105°C. Operates across a temperature range of -55°C to 150°C and is RoHS compliant.
PackageRadial
Voltage100V
Capacitance47uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UBX2A470MPL technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Height
20mm
Height - Seated (Max)
0.846inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
141uA
Length
20mm
Life (Hours)
1000Hour
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
640mA
RoHS Compliant
Yes
Series
BX
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UBX2A470MPL Datasheet
Download the complete datasheet for Nichicon UBX2A470MPL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

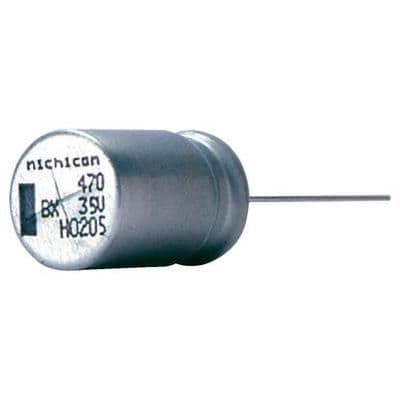

Product Images
