Aluminum electrolytic capacitor, 47µF capacitance, 350V DC rated voltage, 20% tolerance. Features a radial package with 16mm diameter, 25mm height, 7.5mm lead pitch, and 0.8mm lead diameter for through-hole mounting. Offers 700mA ripple current, 12000-hour life at 105°C maximum operating temperature, and 758µA leakage current. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage350V
Capacitance47uF
Voltage Rating350V
Quick Jump:
Technical Specifications
Nichicon UCA2V470MHD technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Height
25mm
Lead Diameter
0.8mm
Lead Pitch
7.5mm
Leakage Current
758uA
Length
25mm
Life (Hours)
12000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
700mA
RoHS Compliant
Yes
Series
CA
Termination
Radial
Tolerance
20%
Voltage
350V
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCA2V470MHD Datasheet
Download the complete datasheet for Nichicon UCA2V470MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

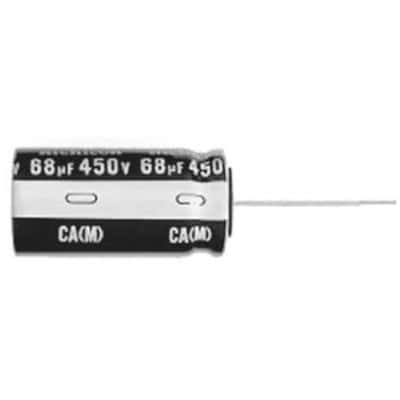

Product Images
