Nichicon
UCD1H331MNL6GS
Cap Aluminum Lytic 330uF 50V 20% (10 X 13.5mm) SMD 800mA 5000h 105°C Automotive T/R
PackageRadial
Capacitance330uF
MountingSurface Mount
PolarityPolar
Quick Jump:
Technical Specifications
Nichicon UCD1H331MNL6GS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
10mm
Impedance
140mR
Leakage Current
3uA
Length
13.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Ratings
AEC-Q200
Ripple Current
800mA
Ripple Current (AC)
800mA
RoHS Compliant
Yes
Series
UCD
Termination
SMD/SMT
Tolerance
20%
DC Rated Voltage
50V
Weight
1.630013g
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1H331MNL6GS Datasheet
Download the complete datasheet for Nichicon UCD1H331MNL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

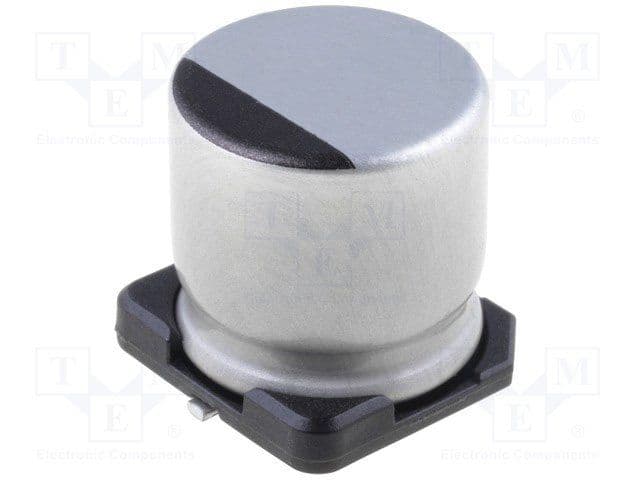

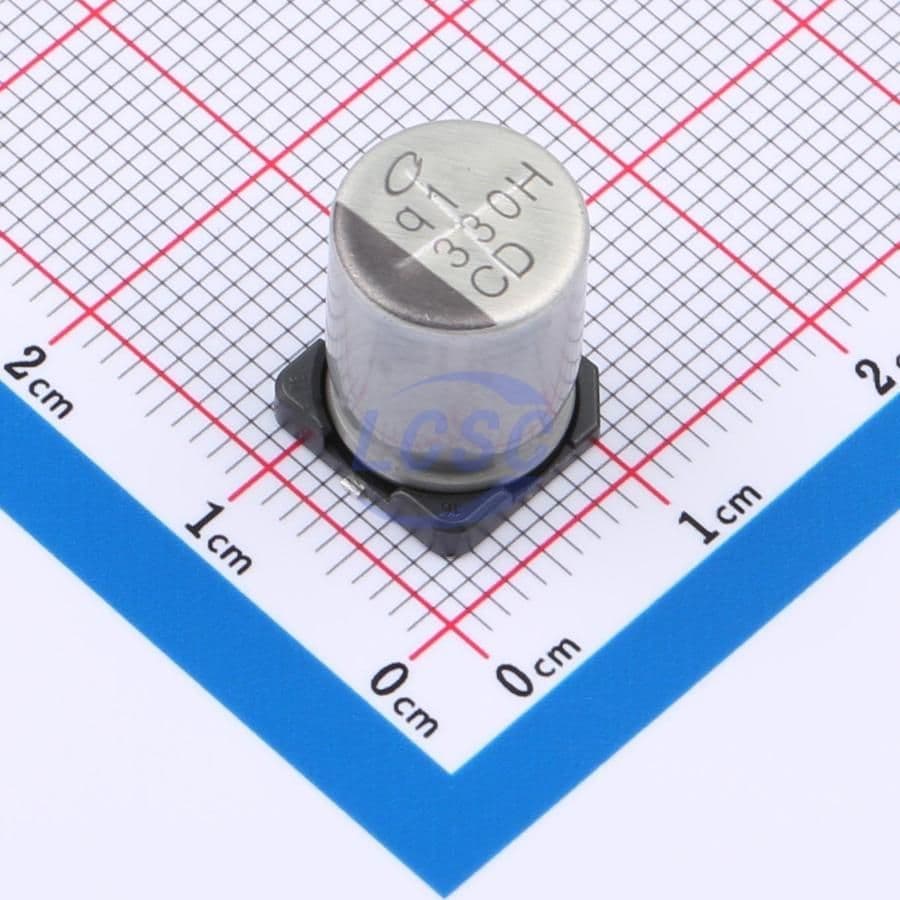

Product Images
