Nichicon
UCD1V221MCL6GS
Cap Aluminum Lytic 220uF 35V 20% (10 X 7.7mm) SMD 600mA 2000h 105°C Automotive T/R
PackageRadial
Capacitance220uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCD1V221MCL6GS technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Dissipation Factor
0.12%
Height
7.7mm
Impedance
180mR
Length
7.7mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Ratings
AEC-Q200
Ripple Current
600mA
RoHS Compliant
Yes
Series
UCD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Weight
1.09999g
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1V221MCL6GS Datasheet
Download the complete datasheet for Nichicon UCD1V221MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

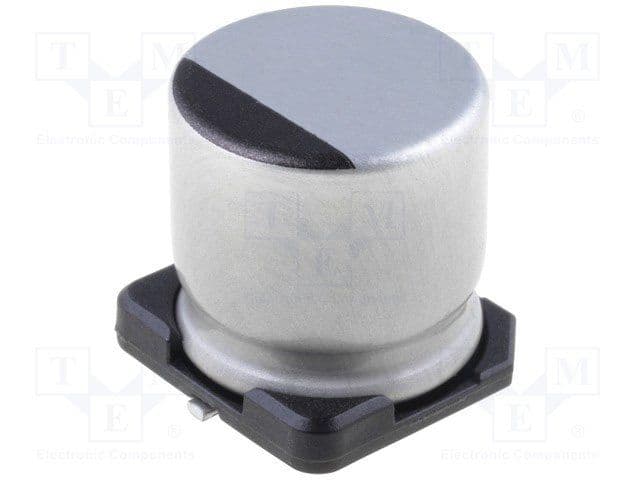

Product Images
