Nichicon
UCD1V471MNL6GS
Cap Aluminum Lytic 470uF 35V 20% (10 X 13.5mm) SMD 950mA 5000h 105°C Automotive T/R
PackageRadial
Capacitance470uF
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCD1V471MNL6GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Impedance
80mR
Leakage Current
3uA
Length
13.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Ratings
AEC-Q200
Ripple Current
950mA
RoHS Compliant
Yes
Series
UCD
Termination
SMD/SMT
Tolerance
20%
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCD1V471MNL6GS Datasheet
Download the complete datasheet for Nichicon UCD1V471MNL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

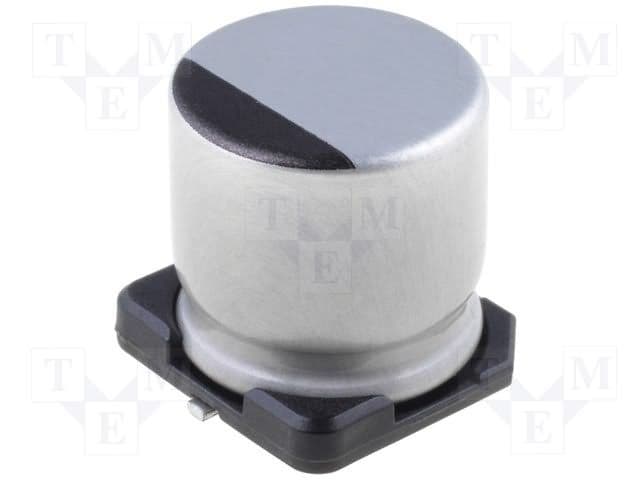

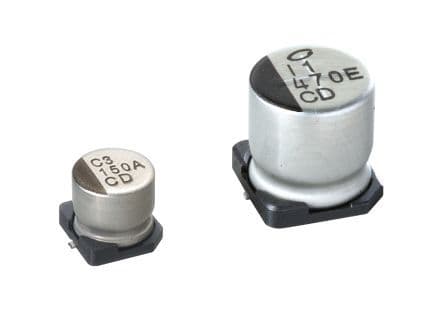

Product Images
