100µF, 35V aluminum electrolytic capacitor with 20% tolerance. Features 80mΩ ESR, 850mA ripple current, and a 2000-hour life at 105°C. Surface mountable in an 8x10mm radial cylindrical package. Operating temperature range from -55°C to 105°C.
PackageRadial
Capacitance100uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCL1V101MNL1GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
80mR
Height
10mm
Height - Seated (Max)
0.394inch
Impedance
80mR
Leakage Current
3uA
Length
10mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
CL
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCL1V101MNL1GS Datasheet
Download the complete datasheet for Nichicon UCL1V101MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

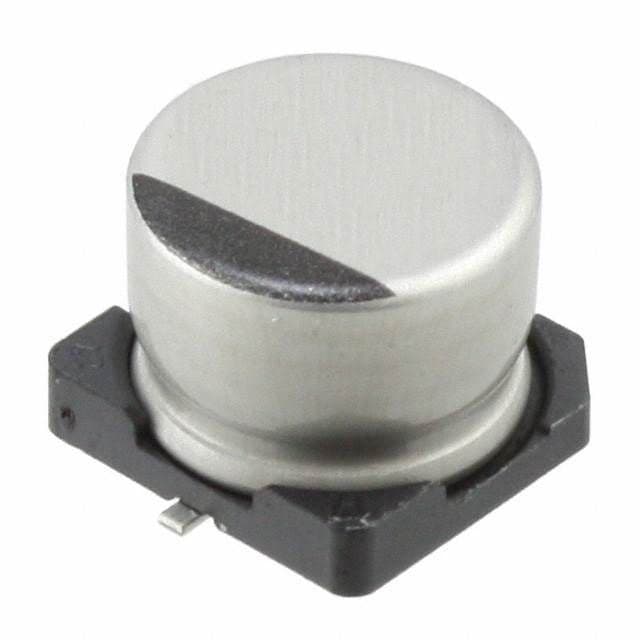

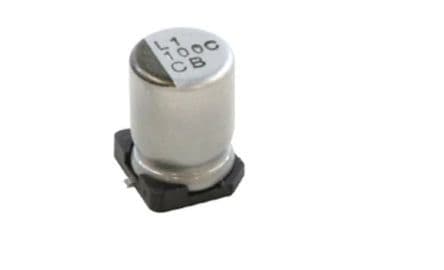

Product Images
