Nichicon
UCL1V391MNL1GS
Cap Aluminum Lytic 390uF 35V 20% (10 X 10mm) SMD 850mA 2000h 105°C Automotive T/R
PackageRadial
Capacitance390uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCL1V391MNL1GS technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
10.3mm
Impedance
80mR
Leakage Current
3uA
Length
10mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
UCL
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCL1V391MNL1GS Datasheet
Download the complete datasheet for Nichicon UCL1V391MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

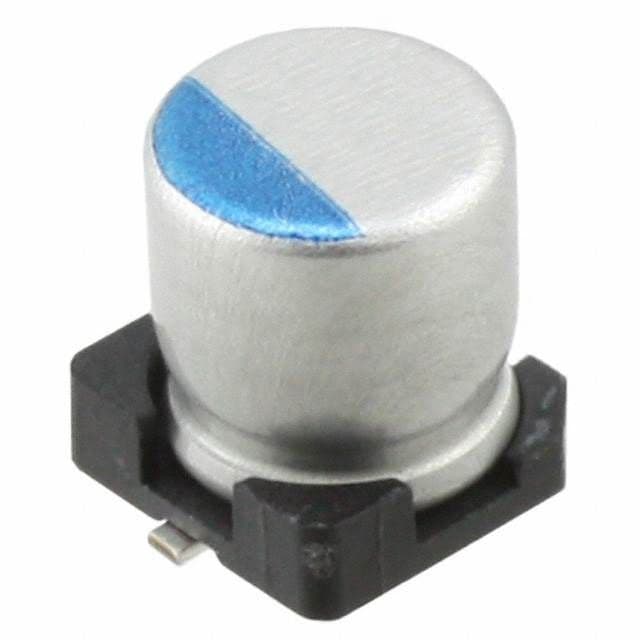

Product Images
