Aluminum electrolytic capacitor with 10µF capacitance and 160V DC rated voltage. Features 20% tolerance, 320mA ripple current, and 8000-hour life at 105°C. Radial package measures 10mm diameter by 16mm height with 5mm lead pitch. Through-hole mounting, RoHS compliant, and operates from -40°C to 105°C.
PackageRadial
Voltage160V
Capacitance10uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Nichicon UCS2C100MPD technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Height
16mm
Height - Seated (Max)
0.689inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
164uA
Length
16mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Ripple Current
320mA
RoHS Compliant
Yes
Series
CS
Termination
Radial
Tolerance
20%
Voltage
160V
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCS2C100MPD Datasheet
Download the complete datasheet for Nichicon UCS2C100MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

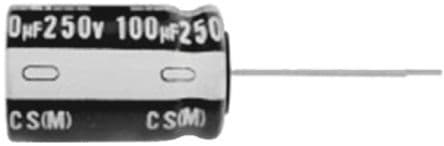

Product Images
