Nichicon
UCS2E151MNY9
Cap Aluminum Lytic 150uF 250V 20% (12.5 X 40mm) Radial 5mm 920mA 10000h 105°C Bulk
PackageRadial
Voltage250V
Capacitance150uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UCS2E151MNY9 technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Construction
Cylindrical
Diameter
16mm
Dielectric Material
Aluminium
Height
31.5mm
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
100uA
Length
40mm
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Packaging
Bulk
Reach SVHC Compliant
No
Series
CS
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCS2E151MNY9 Datasheet
Download the complete datasheet for Nichicon UCS2E151MNY9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

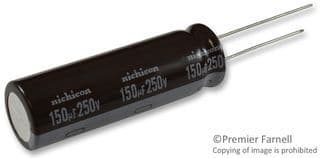

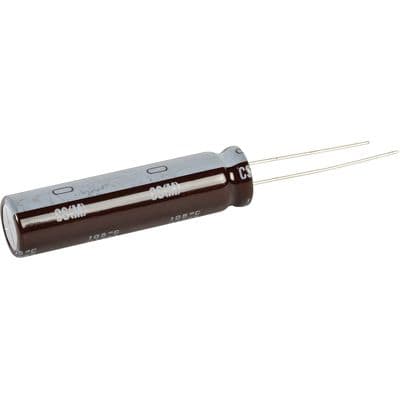

Product Images
