Aluminum electrolytic capacitor, 470µF capacitance, 16V DC rated voltage, 20% tolerance. Features 600mA ripple current, 220mΩ impedance, and 75.2µA leakage current. Surface mount, cylindrical construction with 8mm diameter and 10mm height. Rated for 7000 hours at 105°C, operating from -25°C to 105°C. Lead-free and RoHS compliant.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UCW1C471MNL1GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Features
General Purpose
Height
10mm
Height - Seated (Max)
0.394inch
Impedance
220mR
Lead Free
Lead Free
Leakage Current
75.2uA
Length
10mm
Life (Hours)
7000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
600mA
RoHS Compliant
Yes
Series
CW
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCW1C471MNL1GS Datasheet
Download the complete datasheet for Nichicon UCW1C471MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

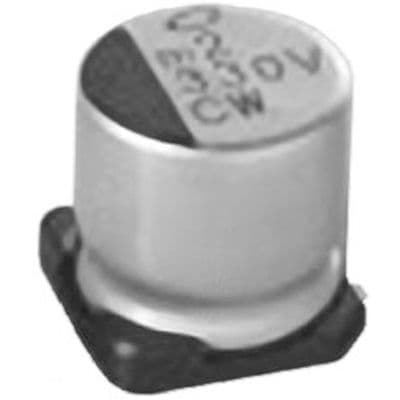

Product Images
