Technical Specifications
Nichicon UCX1H391MNS1ZD technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 90mR |
| Height - Seated (Max) | 0.551inch |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 70 |
| Packaging | Tray |
| Ripple Current | 750mA |
| RoHS Compliant | Yes |
| Series | CX |
| Tolerance | 20% |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCX1H391MNS1ZD Datasheet
Download the complete datasheet for Nichicon UCX1H391MNS1ZD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

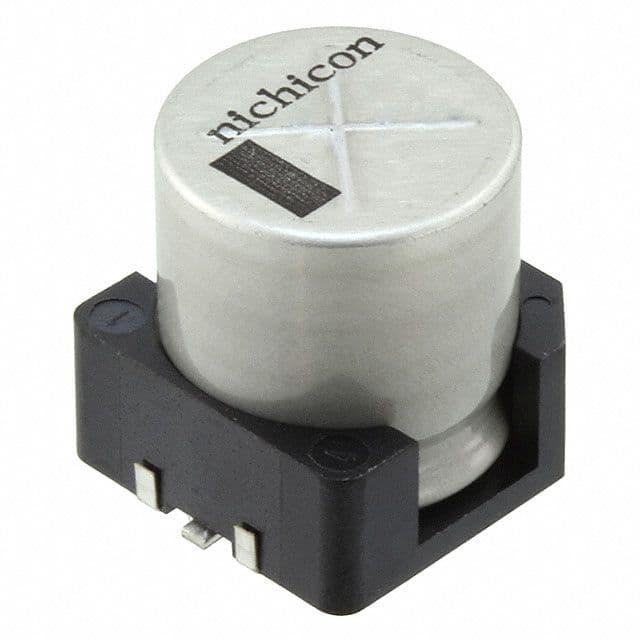

Product Images
