Technical Specifications
Nichicon UCY2W121MHD6 technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Height - Seated (Max) | 1.87inch |
| Lead Pitch | 0.295inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 945mA |
| RoHS Compliant | Yes |
| Series | CY |
| Tolerance | 20% |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCY2W121MHD6 Datasheet
Download the complete datasheet for Nichicon UCY2W121MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

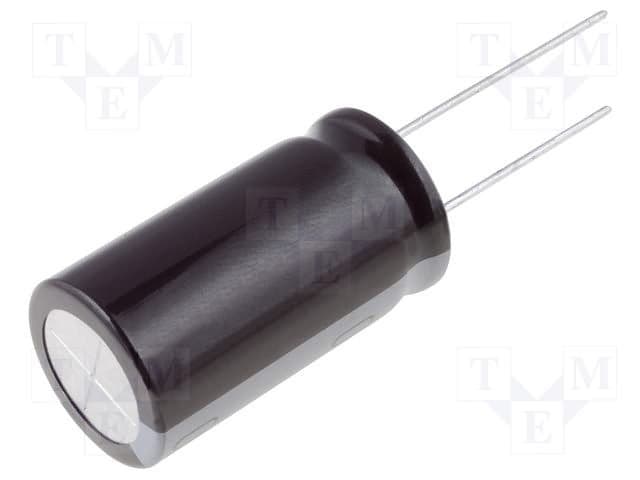

Product Images
