PackageRadial
Capacitance4.7uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UDB1H4R7MPM1TD technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Height - Seated (Max)
0.827inch
Lead Pitch
0.197inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
480mA
RoHS Compliant
Yes
Series
DB
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UDB1H4R7MPM1TD Datasheet
Download the complete datasheet for Nichicon UDB1H4R7MPM1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

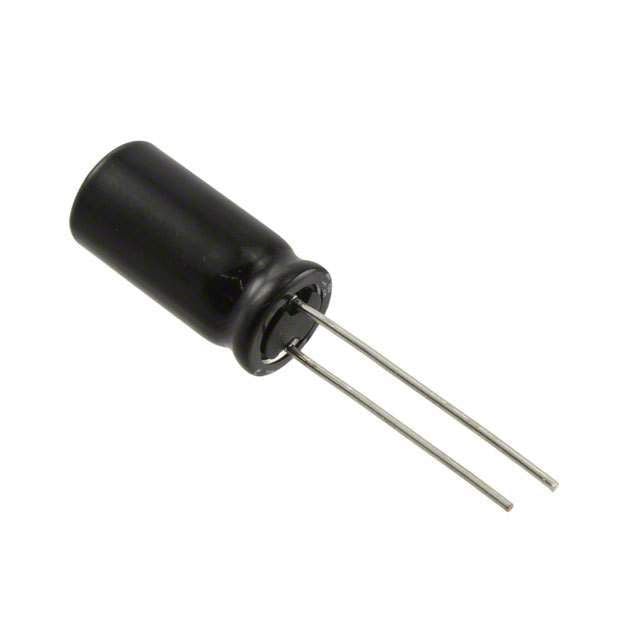

Product Images
