This 4.7mF aluminum electrolytic capacitor from Nichicon features a radial package with a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. It is RoHS compliant and suitable for use in through hole applications. The capacitor has a leakage current of 888.3uA and a ripple current of 1.43A.
PackageRadial
Capacitance4.7mF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UEP0J472MHD technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Height - Seated (Max) | 1.319inch |
| Lead Pitch | 0.295inch |
| Leakage Current | 888.3uA |
| Length | 20mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 1.43A |
| RoHS Compliant | Yes |
| Series | EP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UEP0J472MHD Datasheet
Download the complete datasheet for Nichicon UEP0J472MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

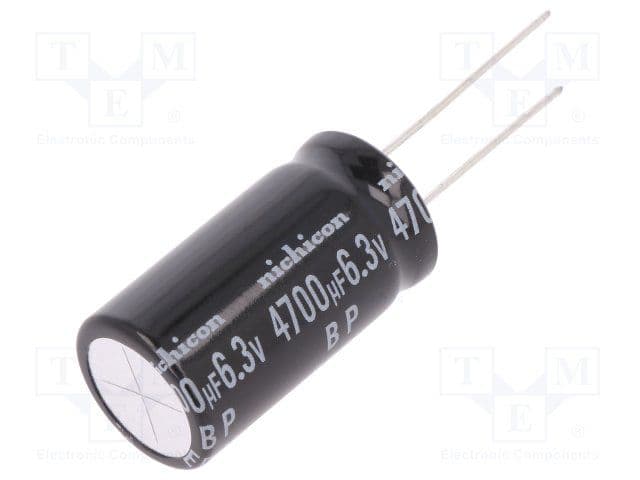

Product Images
