PackageRadial
Capacitance47uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UES1E470MPM technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Height - Seated (Max)
0.551inch
Lead Pitch
0.197inch
Leakage Current
35.25uA
Length
12.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
RoHS Compliant
Yes
Series
ES
Termination
Radial
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UES1E470MPM Datasheet
Download the complete datasheet for Nichicon UES1E470MPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

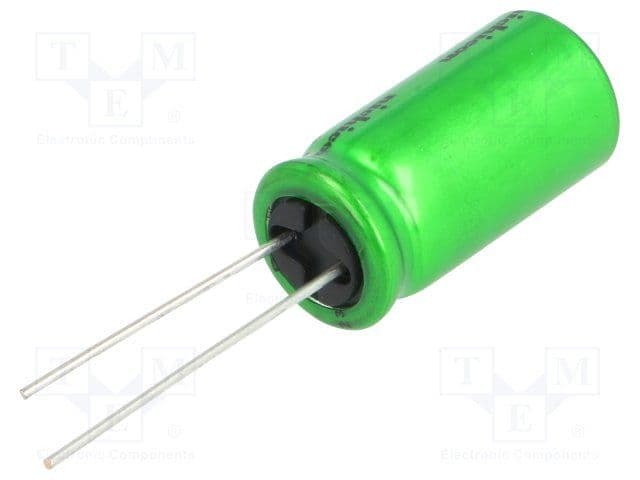

Product Images
