PackageRadial
Capacitance33uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UES1V330MPM technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Dissipation Factor
0.14%
Height - Seated (Max)
0.551inch
Lead Pitch
0.197inch
Leakage Current
3uA
Length
12.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
RoHS Compliant
Yes
Series
ES
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UES1V330MPM Datasheet
Download the complete datasheet for Nichicon UES1V330MPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

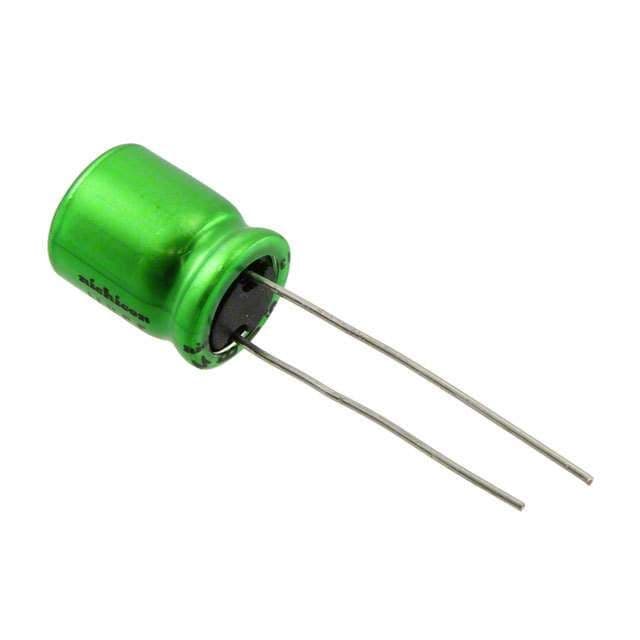

Product Images
